Notice of Specification Change

Target product: 4-channel multi-channel analyzer
Product model number: APG7400A
Description of change: ADC conversion gain was changed from 16k to 4k.
Reason for the change: Due to a replacement product that was changed due to a shortage of semiconductors.

We apologize for the inconvenience and ask for your understanding.
We will strive to develop better products, and we appreciate your continued support and guidance.

8th January 2024


16CH simultaneous sampling & waveform discrimination digitizer
High-counting, high-resolution CdTe detector system
Signal processing module for 10Gbps communication
High-Speed Amplifier Discriminator
Gain-switchable high-speed amplifier
Charge-sensitive preamplifier For semiconductor detectors
 Up to 8-channel output Board for MPPC voltage application
Digital Signal Processor with Max. 32 channel input
Hybrid Digital Spectrum Analyzer
Random Pulse Generator
MCA with up to 16 input channels
MCA with spectroscopic amplifier

16CH simultaneous sampling & waveform discrimination digitizer

512CH readout system can be built (when 32-board synchronization is used)

ADC: 250Msps 16 channels, 14-bit resolution

Time resolution: Coarse 4 nanoseconds, Fine 15.6 picoseconds, LSB

Throughput: 1 Mcps or more per channel
*in hist mode measurement

Communication I/F: Gigabit Ethernet TCP/IP
Data transfer: 30 MByte (Gigabit)/second or more

Product Catalog

High-counting, high-resolution CdTe detector system

High-count processing with special CdTe sensor and our proprietary DSP
High counting time resolution
Resolution at high resolution setting
 700eV@59.5KeV, 1kcps

CdTe size: 5 x 5mm
Window thickness: 1mm

Product Catalog

Main customers
Kyoto University, RISING3

Signal processing module for 10Gbps communication

Ultra-fast online processing of quick scan measurements in less than 1 ms
Input: 8 channels
ADC: 100 MHz, 16-bit
DSP: Baseline restore, pile-up rejector, CFD, etc.
Conversion gain: Up to 4k channels
Throughput: 2.5Mcps
Measurement mode: Histogram, List
Communication: TCP/IP 10GBASE-SR

Product Catalog

Main customers

High-Speed Amplifier Discriminator

Both positive and negative pulses are supported.
Discriminates signals from detectors such as PMTs at set voltage levels and
TTL pulses are output.

Product Catalog

Gain-switchable high-speed amplifier

High-speed amplifier with switchable gain x10/x100.
Ideal for applications where mV output from the detector requires picosecond timing.
applications that require picosecond timing.

Product Catalog

Charge-sensitive preamplifier For semiconductor detectors

750 eV or less
Suitable for Schottky type CdTe detector, CdZnTe detector, etc.

Input withstand voltage: 1000 V (BNC connector) or 2000 V (SHV connector)
Ultra-low noise characteristics achieved by our unique circuit configuration.

OEM supply and custom-made production are available.

Product Catalog

Up to 8-channel output Board for MPPC voltage application

The surface panel has 8 channels of HV outputs, and the HV voltage can be set. After setting the HV voltage, the HV ON/OFF switch After setting the HV voltage, the HV voltage with temperature compensation is applied to each channel by the HV ON/OFF switch.

Connector: R03-R05F

Product Catalog

Digital Signal Processor with Max. 32 channel input

・ Equipped with DSP for gamma ray spectroscopy
Simultaneous sampling of 32 input channels
Throughput of 100kcps or more
・ Built-in Base Line Restorer
・ Built-in Trapezoidal Shaper (trapezoidal waveform shaping circuit)
・ With CFD (Constant Fraction Discriminator) function
・ Supports Pile up reject function

Product catalog

Hybrid Digital Spectrum Analyzer

Digital signal processing of both the anode signal from the scintillation detector and the preamplifier signal from the semiconductor detector on one board!

2 type inputs, 8 channels in total for one board

Maximum 4 channels (CH1 to CH4) for scintillation detector
ADC: 500MHz 14-bit
DSP: CFD, TDC, QDC, etc.

Maximum 4 channels (CH5 to CH8) for semiconductor detectors
ADC: 62.5MHz 16-bit
DSP: Baseline Restorer, Pileup Reject

Product catalog

Random Pulse Generator

2-channel random pulse generator with excellent cost performance

Feature #1
Reproduce the stochastic event of Poisson distribution by the exponential random number generation algorithm by the digital method.

Feature #2
Digital white noise generation algorithm.

Product catalog

MCA with up to 16 input channels

・High-speed ADC installed for each channel
Up to 16 channels
Conversion time 100ns or less
Throughput 200kcps/channel or more
・List data transfer up to 1 Mcps/board or more

Product catalog

MCA with Spectroscopic amplifier

This is a multi-channel analyzer with up to 16-channel input that realizes the semi-Gaussian waveform shaping of a spectroscopic amplifier by digital signal processing. Parameter settings such as shaping time, gain, and pole zero can be changed programmably from the PC while maintaining the ease of use of the analog amplifier.

Up to 16 channels
Energy resolution 1.70keV@1.33MeV
Throughput 50kcps/channel or more

Product catalog

5Gsps, 32ch input, switched capacitor ADC board

Up to 32 channels of analog pulse can be converted at high speed using a switched capacitor ADC.

We will help you build an advanced measurement system by applying it to various needs.

Product catalog

Main customers in Japan
Nuclear Science Institute, Institute for Fusion Science

National Institute for Quantum Science and Technology Naka Fusion Research Institute

Digital Positron Annihilation Lifetime Measurement System


 Positron lifetime measurement is used for the measurement of vacancy-type defect of semiconductor in materials field. This is an all-in-one positron lifetime measurement system with measurement device and power supply. In the lifetime measurement, the life time is calculated by using 3 Gsps, which is imported by high-speed pulse signal from two BaF2 scintillators. In the Coincidence Doppler broadening (CDB), the 2D histogram is made by wave height value of coincidence from two Ge semiconductor detectors. Additionally, these devices can be combine to be measured by AMOC, which is the correlation of lifetime and momentum.
Coincidence Doppler Broadening

Compact MCA APG7305A USB-MCA-amp with built-in spectroscopic amplifier function

Image of APG7305A

Configuration example
 It is a lightweight, compact MCA that works with USB bus power from PC, which realized semi-Gaussian waveform shaping function of spectroscopic amplifier by digital signal processing. Parameter settings such as shaping time and gain can be changed to programmable by computer.
 It has low noise, wide gain, programmable shaping time, and it is compatible with a wide range of detectors such as semiconductor detectors, proportional counters and scintillation detectors. Moreover, it is possible to obtain very stable high resolution with automatic gated BLR.
 Channel  1 channel
 Shaping time  0.25 μs or more. 0.625 and 0.125 us are not supported.
 Functions  Spectrum mode and WAVE mode
 Throughput  50 kcps or more
 ADC gain  16384, 8192, 4096, 2048, 1024, 512
 Powersupply  USB bus power
 Communication I / F  USB 2.0
 Dimentions  70 mm (W) x 160 mm (D) x 20 mm (H)
 Weight  Approximately 230g

Pileup separator processor

 A processor that executes separate in real time is installed in hardware!
Connecting the boards further improves the output!

1Gsps, 14-bit ADC
100Msps, 16-bit ADC

New technical information

The new product above was presented at the "The 2017 IEEE NSS - MIC" held in Atlanta from 24th to 26th November 2017 as a company presentation.

Please read through.
2.8 MB

Sample programs

Sample programs
For the products below, we have prepared a sample program so that you can use it in the program environment created by the customer.
 APN504(X)  NIM  DSP 4 channel with built-in HV and Preamp power supply
 APU101(X)  Unit  DSP 1 channel with built-in HV and Preamp power supply
 APN101(X)  NIM  DSP 1 channel with built-in HV and Preamp power supply
 APG7400A  Portable  MCA 4 channels, List mode measurement support, USB bus power operation

 Operating environment
 Microsoft Visual C ++   Microsoft Visual C #  National Instruments LabVIEW  Linux
A corresponding model will be added in the future.

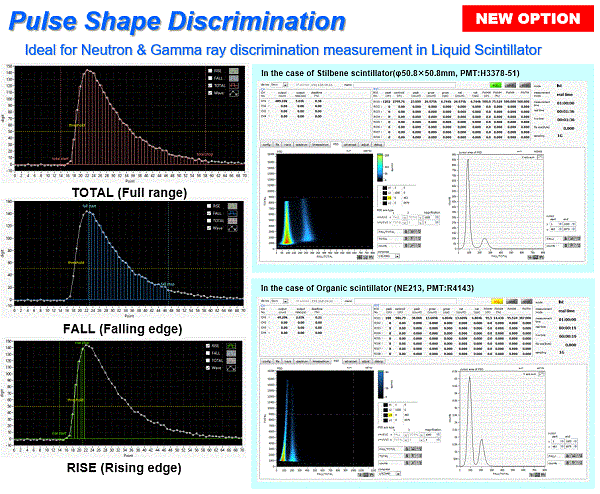

Option: Pulse Shape Discrimination

Integrate the specified range individually for TOTAL (full range), FALL (falling part), RISE (rising part) for the waveform collected by the DPP board, and transfer it to the PC via Ethernet as list data. The 2D histogram is displayed based on the integration result. Objects on the vertical and horizontal axes of the histogram can be selected arbitrarily, and data in the specified range can be extracted and a one-dimensional histogram can be displayed

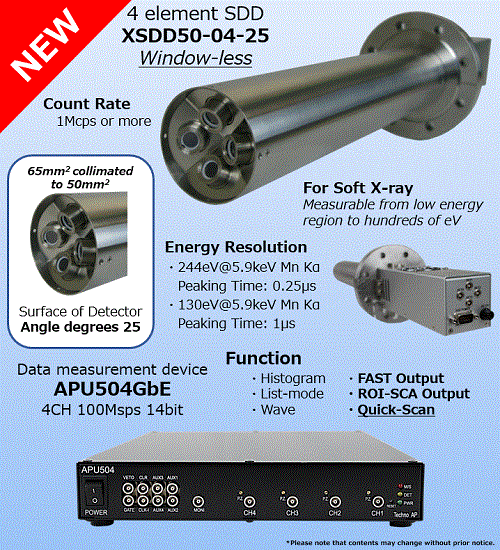

SDD system for vaccum compatible and equipped with focused SDD array

Our Silicon Drift Detector (SDD) system has gained popularity from customers. This product XSDD50-04-25, the focal length of the specimen can be made as short as possible by the detector surface at 25 degrees, and the measuring method can be expanded.

In addition to the excellent counting rate and energy resolution originally possessed by SDD, please enjoy the highest level measurement with the data measurement device APU504XGbE which developed by our development / design specialist at your X-ray beam line.

It can be customized according to your request. Please do not hesitate to contact us for product details.

Silicon Drift Detector (SDD) system for vaccum compatible

We launched manufacturing and selling Silicon Drift Detector (SDD) system which is corresponding to the vacuum. This product has high counting rate and high energy resolution, and therefore it used by Synchrotorn radiation facilities and Photon factory in Japan. This system is possible to measure a light element such as a carbon, and it realize a high sensivity using more element of SDD. We desing and manufacture these kind of product by ourselves, so we customize a diameter and type of flange, the number of element, and the length of cylinder.

 Model XSDD50-04
Detector 4 element SDD, corresponding to the vacuum
1 element SDD, corresponding to the vacuum
Element SDD 65mm2 collimated 50mm2 Window-less or AP3.3
All element area 260mm2 (65mm2 x 4 element)
Active area 200mm2 (65mm2 x collimated 50mm2 x 4 element) 65mm2 x collimated 50mm2
Vaccum capable <10-5 Pa
Flange type ICF 114 (Standard)  ICF 70 (Standard)
Transport with bellows corresponding to vaccum
Gate valve and angle valve

Transport with bellows corresponding to vaccum
Power Supply minus 200 V, plus or minus 5 V, plus 3.3 V
Recommende Power Supply APN3900 (NIM)
APV3900 (VME)
APN301 (NIM)
APV301 (VME)
Recommende Measurement board APN504XGbE APU101XSDD

Digital Signal Processor APU101


 APU101 is ALL-in-ONE digital spectrometer which has high-voltage power supply, preamp power, and MCA (Multi Channel Analyzer). Preamp signal of the detector is directly input to the APU101, and the digital signal processing is processed a high-speed ADC (100MHz, 14bit) and high-integrated FPGA. The measurement data will be transferred to the PC via Ethernet.


 Screen of application
 Resolution: 125 keV @ 5.9 keV, Peaking time: 2 us (SDD)
  250 eV @ 5.9 keV @ Peaking time: 0.25 us (multi-SSD)
 Throughput: 1 Mcps and more
 Trapezoidal filter: 0.1 to 12 us
 Functions: ROI-SCA, GATE, VETO, Bias supply (plus or minus 4000 V)

Multi-element SDD fluorescence X-ray

Seven element SDD and Data acquisition and power supply module

of XSDD50-07
 XSDD Series is ALL-in-ONE system which has detector, which is needed X-ray absorption microstructure measurement in the analysis of materials field, data acquisition board, and power supply. It was realized high-sensitivity by multiple SDD detector with high-count rate and energy resolution. Additionally, it is possible to be measured high-count rate by a transistor reset processing and DSP processing.
Screen of application
ICR: 400 k
185 eV @ 5.9 keV
Peaking time: 0.25 us
 ・All effective area: 350 mm2
(65 mm2 colimated to 50 mm2 x 7 elements)
 ・Function: Histogram, List, Waveform, ROI-SCA.
 ・ADC: 8 channel, 100 Msps, 14-bit
 ・Energy resolution: 244 eV @ 5.9 keV MnKα
(Peaking time: 0.25 us, OCR: 1000 k)
 ・Interface: Ethernet (TCP / IP)



Device connection example

 Number of channles  4 channels
 Dead-time  1.5 us
 Measurement Mode  Spectrum and List
 Throughput  50 kcps and more
 ADC Gain  16384, 8192, 4096, 2048, 1024, 512
 Power supply  USB bus power
 Communication I / F  USB 2.0

Digital Pulse Processor APV8508-14/12Gb (500 Msps)

APV8508-14    APV8508-12
・Timestamp: 64-bit (Max. 55 month) LSB: 7.8 ps
・Throughput: 1 Mcps and more / channel (Histogram mode)
150 kcps and more / channel (List mode)
・Analysis mode: List (TDC + QDC etc.), Wave, Histogram, etc.
・Function: (Digital) CFD, TDC, QDC, PSA, (Option) Coincidence
・Communication I / F: TCP / IP, Gigabit Ethernet
・Data transfer: 20 MByte / sec. and more
・Use example: Gamma and Neutron discrimination and beta-ray measurement, high-speed / high-resolution scintillator, such as LaBr3, LYSO, etc.

Analysis example
Wave mode
Histogram mode

Digital Signal Processor APN504X GbE

Front / Rear
 APN504X is a radiation measurement device with digital signal processing (DSP) for X-ray spectroscopy. APN504X does not use conventional spectroscopyamp. It directly input the preamp signal of the detector, such as SDD, Si(Li), SSD, SiPin, etc. And then, it does digital signal processing by high-speed ADC (100 MHz, 14-bit) and highly-integrated FPGA. The measurements data are Histogrum, List, and Quick scan. These data transferred to the PC via network. The application is attached without cost. Quick scan mode is a time resolution measurement. In this mode, it send histogram data to the PC by every outside trigger timing (Min. 10 ms), and PC saves data to an HDD consecutively. This mode is most suitable for the QXAFS measurement.
Emitted light exposure examination
・Number of channels: 4 channels, simultaneous sampling
・Resolution (@5.9 keV):
[In the case of 19 elements SSD]
 139 eV Peaking Time: 6 us
 250 eV Peaking Time: 0.5 us, *Comparable Analog 0.25 us
[In the case of SDD (high-resolution type)]
 125 eV Peaking Time: 2 us
 145 eV Peaking Time: 0.5 us, *Comparable Analog 0.25 us
・Throughput: 1 Mcps and more
・Communication I / F: TCP / IP, Gigabit Ethernet
Technical Information

 PDF 15.7 MB
 This is a presentation file in "2014 IEEE-NPSS Real Time Conference (RT)".Not only the summary of the product but also you will find the description, etc. and measurement data and user case studies of basic performance. Please read by all means.
